The Templates Settings 🔧 section in WebManager offers powerful tools to customise how product data appears throughout the RepZio iOS App. You can access this feature by navigating to WebManager > Settings > Templates.
📍 Where to Access the Templates Section

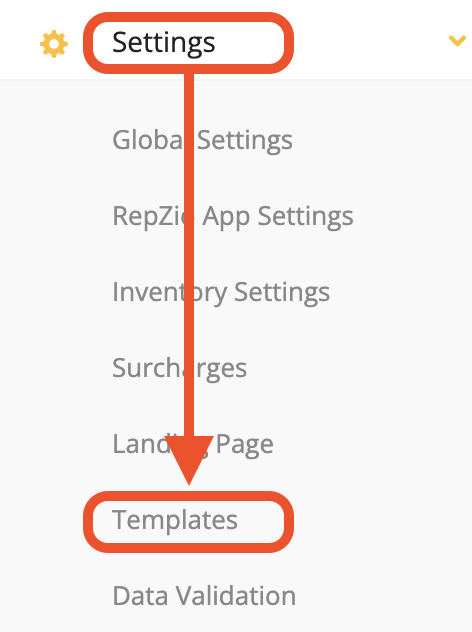

To access Templates:
-
Log into WebManager
-
Click on the Settings tab
-
Scroll to the Templates section
This is where you’ll control how product details are displayed across our various platforms.
🔍 How This Page Works
When you open the Templates page, you'll see:
-
Buttons — These represent predefined product data fields (e.g.,
ItemID,ItemName,OnHandQuantity, etc.) -
Text fields — Each one corresponds to a specific panel or screen in the RepZio App
You can populate the fields in two ways:
-
Drag and drop an orange button into a text field (it will auto-wrap in
{{ }}) -
Manually type the variable with mustache brackets, e.g.,
{{ItemID}}
🧵 Available Data Fields
Here are the fields you can use:
ContainerMinQtyCubesDescriptionDimensionsInventoryStatusItemIDItemNameNotesOnHandQuantityOrderMinimumQuantityOrderMultipleQuantityPieceBoxUnitOfMeasureUPCWeightUDF1UDF2UDF3UDF4UDF5udf6udf7udf8udf9udf10udf11udf12udf13udf14udf15udf16udf17udf18udf19udf20
To make the most of this feature, it's important to know how the tabs map. Here’s a breakdown of the different tabs:
- List All
- Product Details
- Child Products
- Quick Order Popover
- Scan Items
- Order Items
- Client Info
🔹 Note: UDF fields are custom data fields.

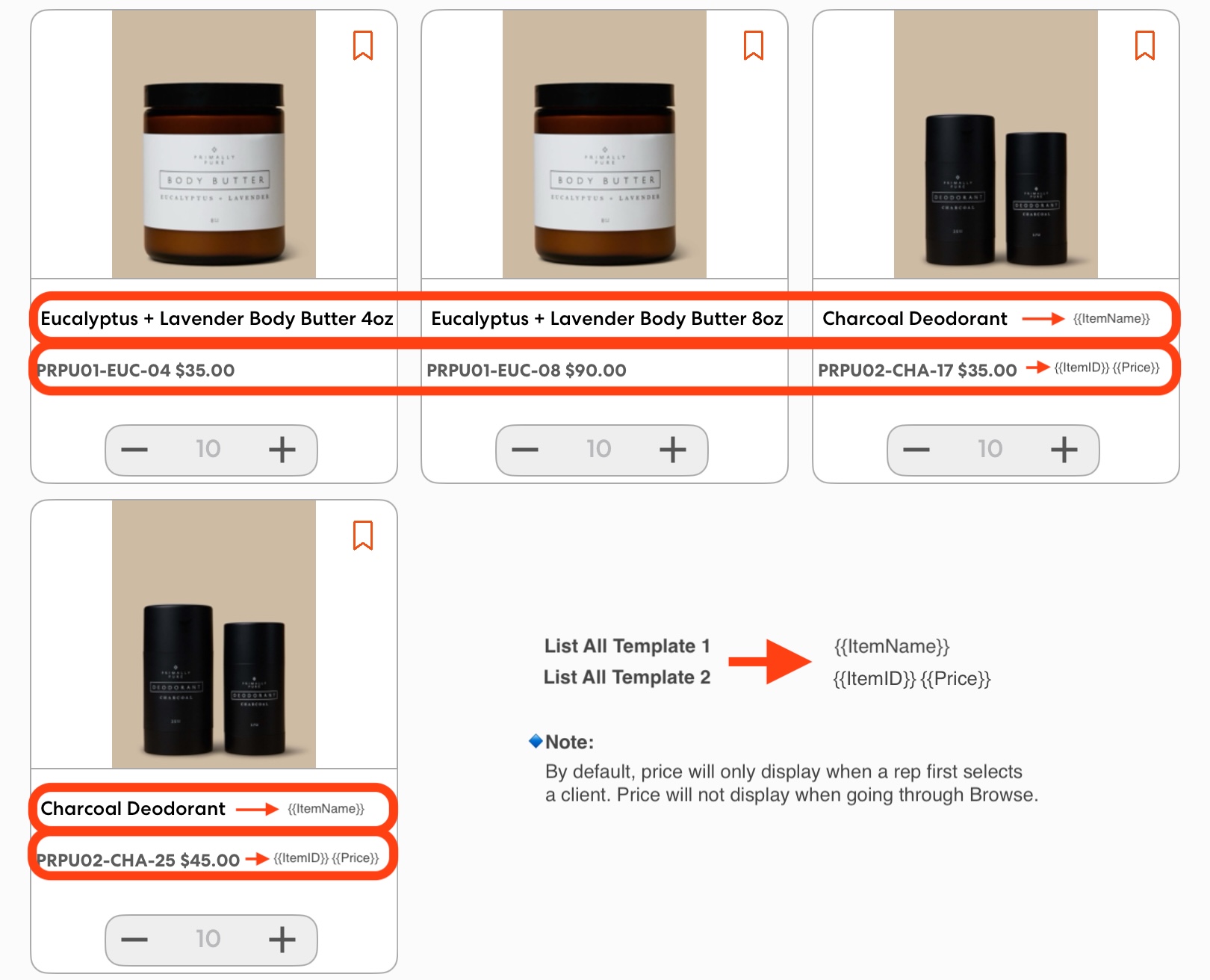

🗂️ List All Template Settings
These templates control how product info is shown in list views and quick-order displays:
-

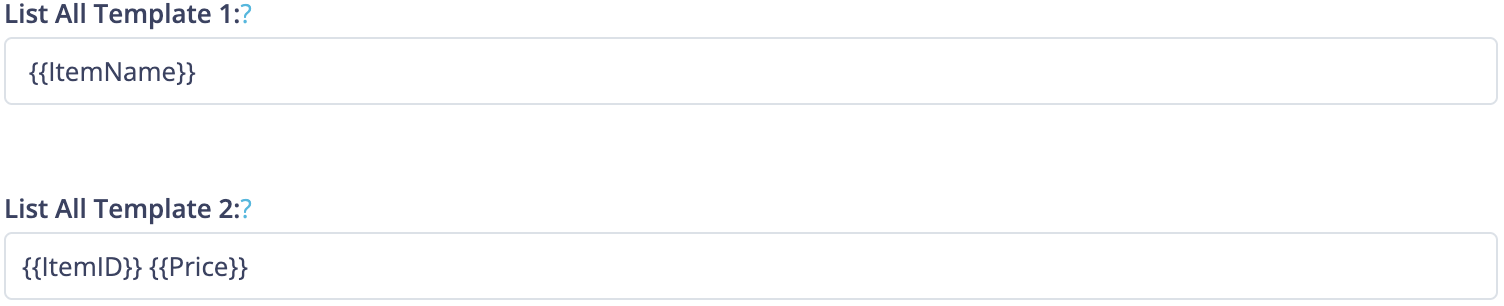

📋 List All Template 1 – Top line in "List All Items" view
-
📋 List All Template 2 – Bottom line in "List All Items" view
🔹 Note: These settings apply to the RepZio iOS App only. For product display settings for our ShopZio or B2B Direct platforms, please refer to the admin section for setup.
Example
| Template Settings |
| Product Display |

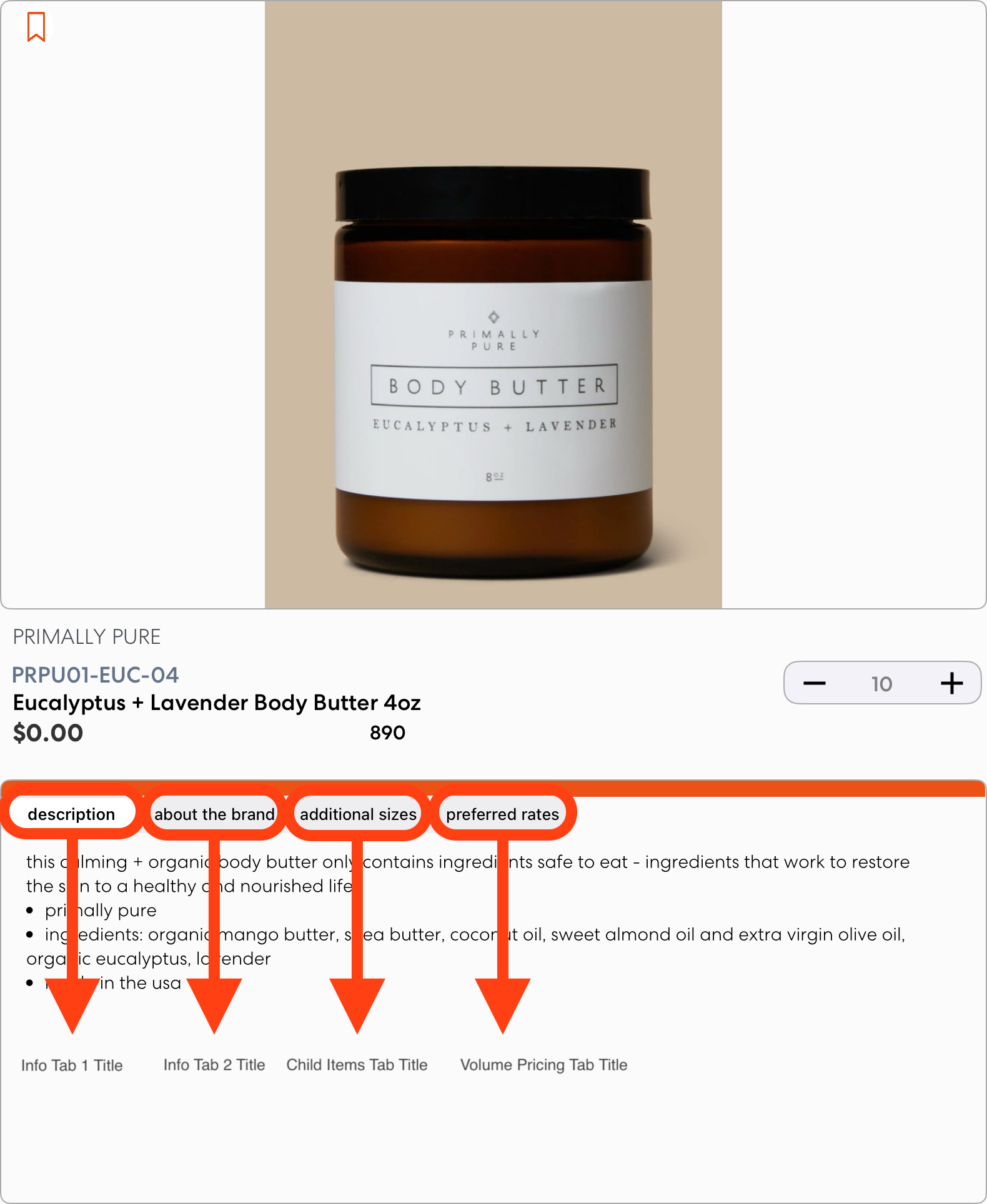

🧾 Product Details Template Settings
These control the product detail view when a user taps into a specific item:
-
🧡 Item Template (line one) – Top line of product info
-
🧾 Item Template (line two) – Bottom line of product info
- 🏷️ Info Tab 1 Title – Title for the description field
-
📝 Info Tab Template 1 – Main product description
- 🏷️ Info Tab 2 Title – Title for the notes field
-
📝 Info Tab Template 2 – Notes or additional information
-
🧸 Child Items Tab Title – Title for the child products panel
-
💰 Volume Pricing Tab Title – Title for the volume pricing panel
Looking to hide on hand quantity for items? Email our Support Team for assistance.
Example
| Template Settings |
|
Why do the Titles not need the mustache brackets {{ }}? These areas are titles and you are not pulling data into the titles; therefore, you do not need to and would not use the mustache brackets {{ }} for titles. 🔹 Note: In the product details tab for the product display pages, price is automatically setup to display. If you select a client first, you will see the actual price. If you go through Browse, you will see $0.00 instead. This does not mean that the price is $0.00, but it should indicate that a client or price level has not yet been selected. 🔹 Note: The Child Items and Volume Pricing tabs will only appear on items with those setup in the system. Additionally, by default the Child Items Tab Title will be set to Child Items but can be updated here, as can the title for Volume Pricing. |
| Product Display |
✨ Formatting Fields Using HTML
For fields like Info Tab Template 1 and Info Tab Template 2, you can use basic HTML to format the content. 🖍️
Common examples include:
-
<b>bold text</b> -
<ul><li>List items</li></ul>
👉 For more formatting ideas, we recommend you review W3Schools HTML Coding or a similar site.
❓FREQUENTLY ASKED QUESTIONS (FAQS)
Q. Can I preview how these templates look on the iPad before publishing?
A. While there's no live preview inside WebManager, you can sync your changes and open the RepZio App to see how they appear in real time.
Q. What happens if I leave a template field blank?
A. If left blank, that section will not display any information in the app. It's safe to leave optional fields empty if the data isn’t relevant.
Q. Can I use multiple data variables in a single field?
A. Yes! You can combine multiple variables like {{ItemName}} - {{ItemID}} in the same field to display richer product info.
Q. Is HTML supported in all template fields?
A. No. HTML is only supported in specific fields like Info Tab Template 1 and 2. Using HTML elsewhere may cause display issues.
Q. What do the orange buttons represent?
A. Each orange button is a pre-defined data variable (like ItemID, ItemName, etc.) that you can drag into the fields to easily add dynamic product info.
The "Templates" section offers a variety of powerful tools that allow you to change how your product data is displayed within the RepZio App. The Templates section can be found within the WebManager under the “Settings” tab.
